inside dimensions:35cm(W) x 35cm(D) x 35cm(H)
external dimensions:47cm(W) x 47cm(D) x47cm(H)
P/No.:CB04.43V
Refrigerated for 200 hours or more, frozen for 50 hours or more Fresh food, medical supplies, disaster relief
Features
Maintains a constant temperature for a long period of time up to a large capacity.
Size can be customized. (Pallet size containers are available as an extension.)
The secret to long-time cold storage: The vacuum insulation material is surrounded by polyurethane for improved insulation performance.
We would like transportation companies that need refrigerated/freezer trucks but cannot obtain them due to their high cost to use them with room temperature trucks. It is large enough to be transported by cab, etc.
We propose the type and number of ice packs for your request.
contact
Test data
The experimental results are an example. The cold storage time varies depending on the conditions of use.
When the outside temperature was about 30.4 degrees Celsius, The temperature inside the chamber was maintained at -10°C or lower for 27 hours.
When the outside temperature was about 25.6 degrees Celsius,The temperature inside the chamber was maintained at -20°C or lower for 51 hours.
When the outside temperature was about 24.4 degrees Celsius, The temperature inside the chamber was maintained at 8°C or lower for 200 hours.
We propose the type and number of ice packs for your request.
contact

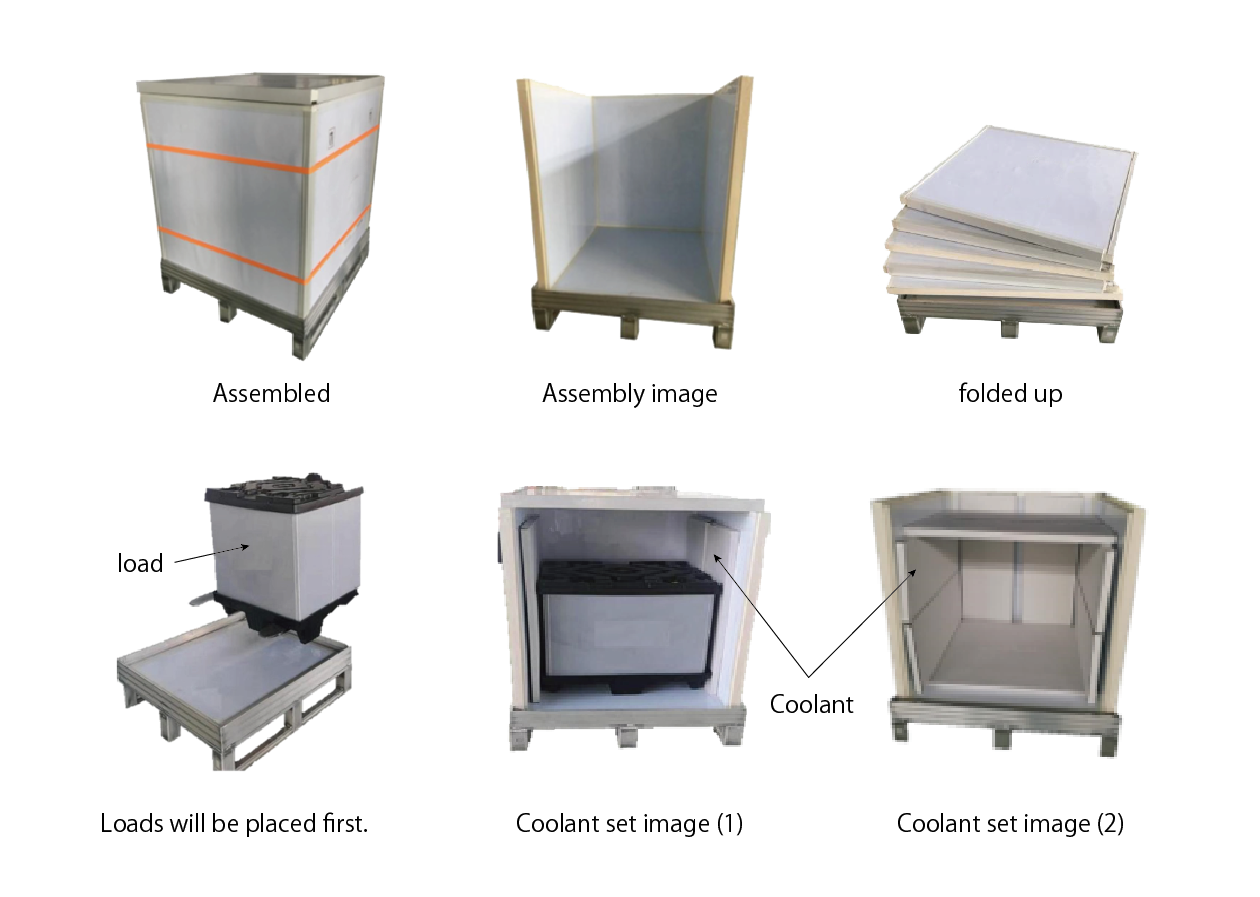

Reference: Pallet size container
PU-VIP cold storage box sizes can be customized.
Here is an example of expansion to pallet size.
